0.9 Inch OLED Display Module

0.9 Inch OLED Display Module

Regular price Rs. 219.00
Regular price Sale price Rs. 219.00
Sale Sold out
Shipping calculated at checkout.

Description

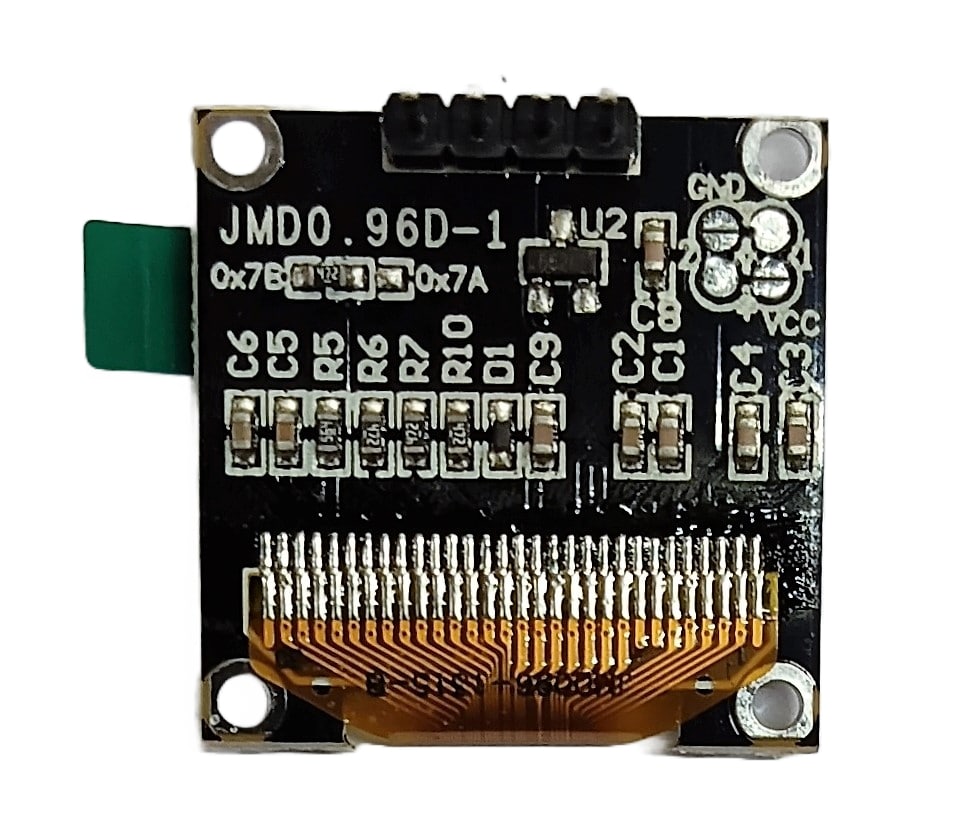

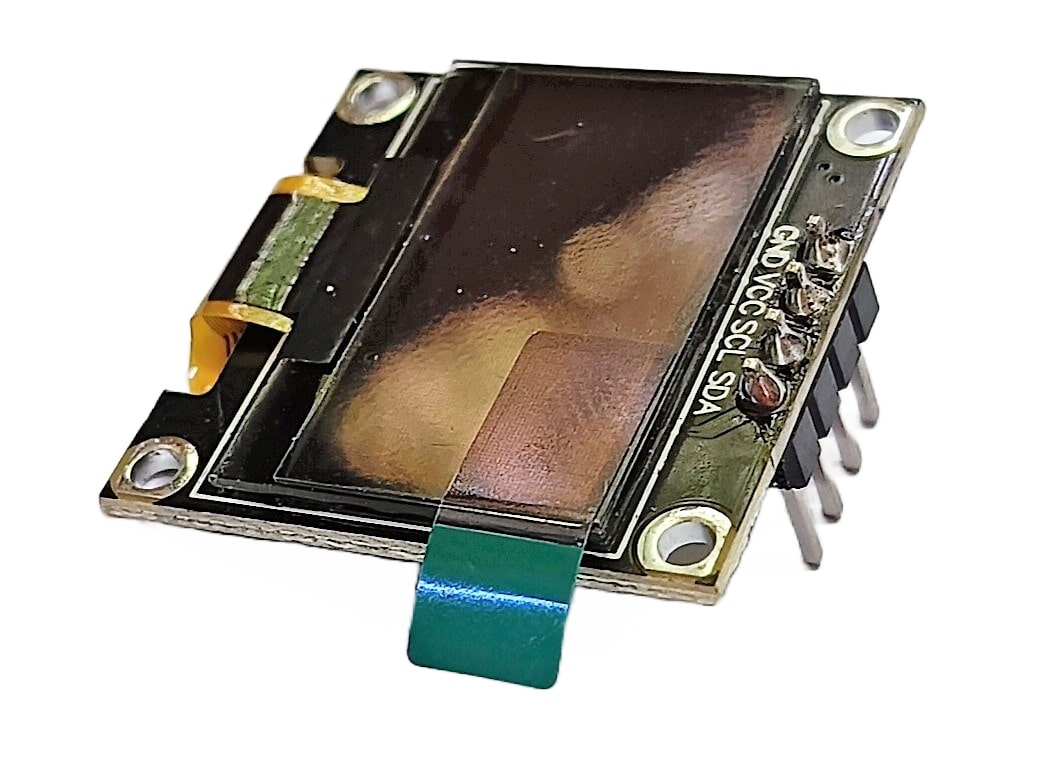

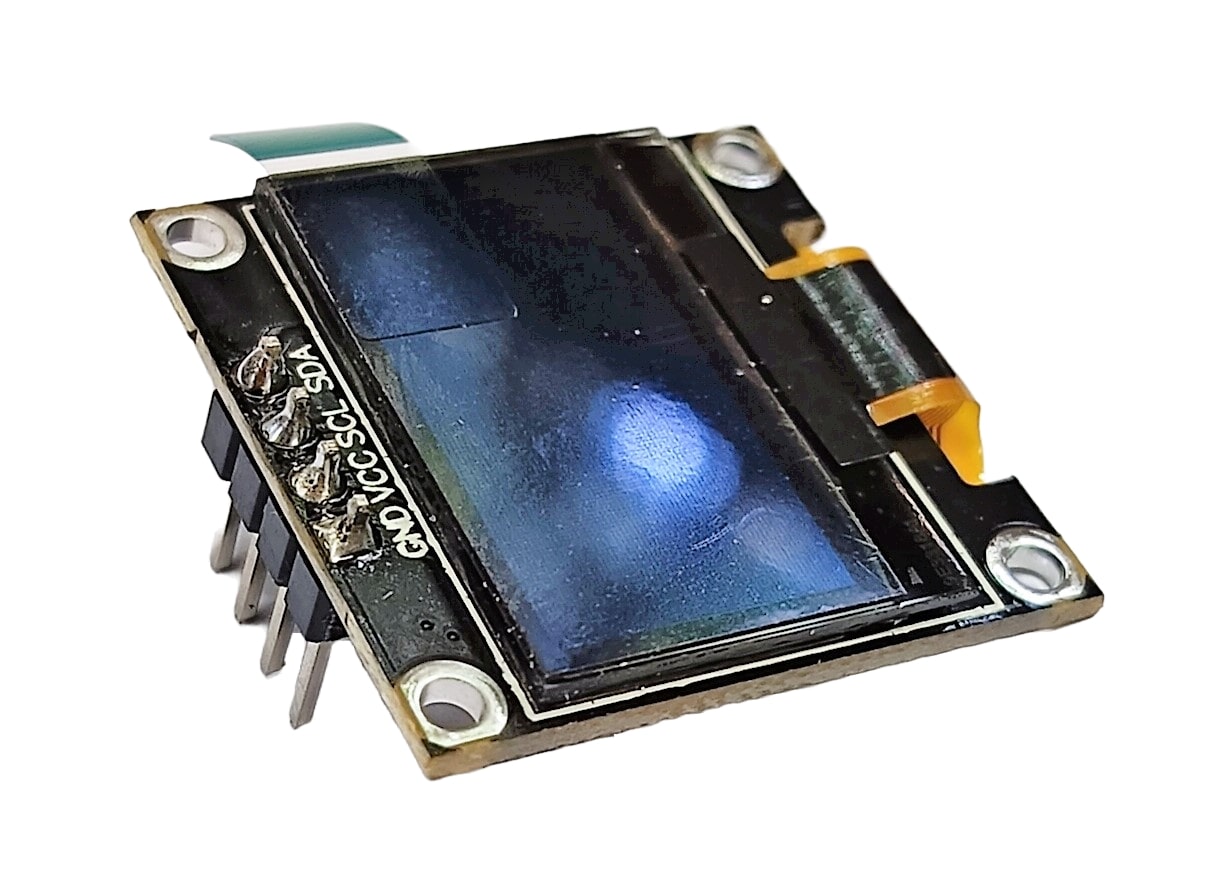

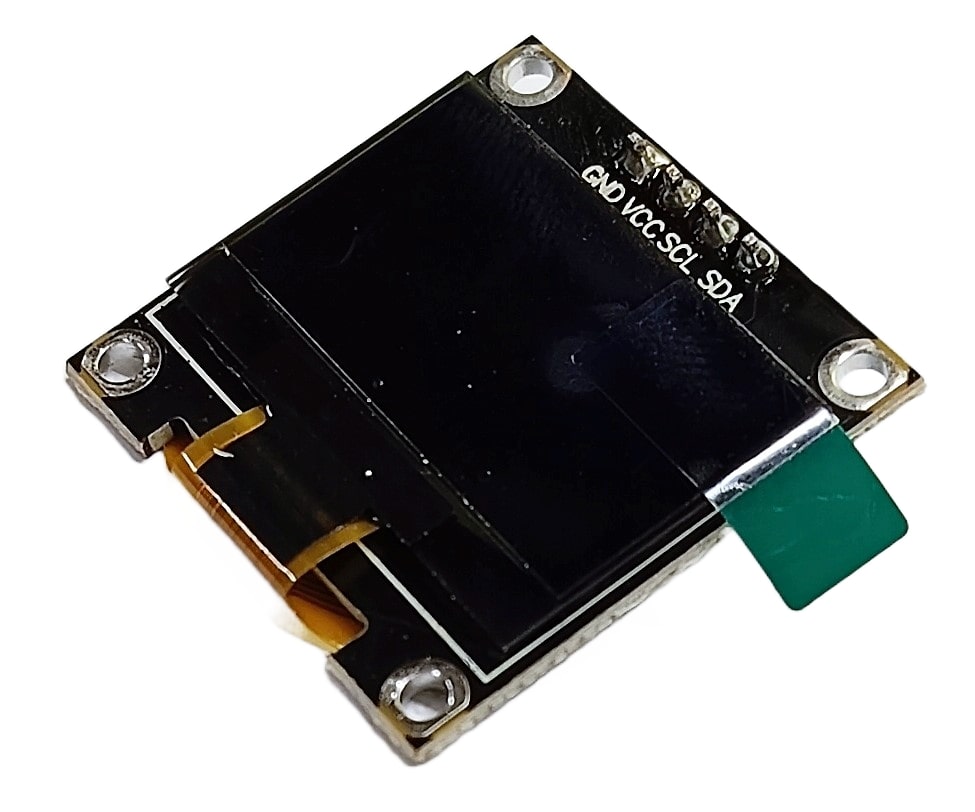

The 0.96-Inch I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I2C protocols. It has to have a resolution of 128×64. The package includes a display board, a display, and a 4-pin male header pre-soldered to the board.

Specifications

Specification Details
Display Size 0.96 Inch
Pixel Colour Blue
Resolution 128 x 64 Pixels
Active Display Area 21.74 x 10.86 mm
Driving Voltage 3.3-5V
Operating Temperature -40º to 70º Celsius
Interface Type I2C IIC
Length 26 mm
Width 26 mm
Height 10 mm
Weight 4 gms
View full details
